유볼트앙카

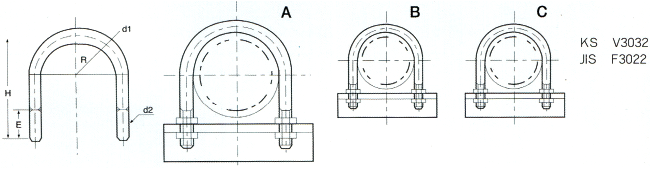

U-BOLT

Metric
Nominal SIZE	Out dia of Pipe	U-BOT
		R	D1	D2	TYPE A		TYPE B		TYPE C
		R	D1	D2	H	E	H	E	H	E
15	21.7	12	5.25	–	–	39	20	47	47	30
20	27.2	15	5.25	–	–	45	20	53	53	30
25	34.0	18	5.25	–	–	52	20	60	60	30
32	42.7	23	7	–	–	60	20	74	74	30
40	48.6	26	7	–	–	66	20	74	74	30
50	60.5	32	7	–	–	78	20	86	86	30
65	76.3	40	8.9	–	–	98	25	108	108	35
80	89.1	46	8.9	–	–	110	25	120	120	35
90	101.6	52	8.9	–	–	123	25	133	133	35
100	114.3	59	8.9	141	50	–	–	–	–	–

Unified(Ref)
Nominal SIZE	PIPE			U-BOT
	Pipe		Pipe Out Dia	R	D1	D2	TYPE A		TYPE B		TYPE C
	A	B	Pipe Out Dia	R	D1	D2	H	E	H	E	H	E
15	15	1/2	21.7	11	5.3	1/4	–	–	39	16	47	30
20	20	3/4	27.2	14	5.3	1/4	–	–	52	16	60	30
25	25	1	34.0	18	5.3	1/4	–	–	52	16	60	30
32	32	1/4	42.7	22	6.8	5/16	–	–	60	16	68	30
40	40	1/2	48.6	25	6.8	5/16	–	–	66	16	73	30
50	50	2	60.5	31	6.8	5/16	–	–	78	16	85	30
65	65	2/2	76.3	39	8.3	3/8	–	–	98	20	106	35
80	80	3	89.1	45	8.3	3/8	–	–	98	20	106	35
90	90	3/2	101.6	51	8.3	3/8	–	–	123	20	132	35
100	100	4	114.3	58	8.3	3/8	140	150	–	–	–	–

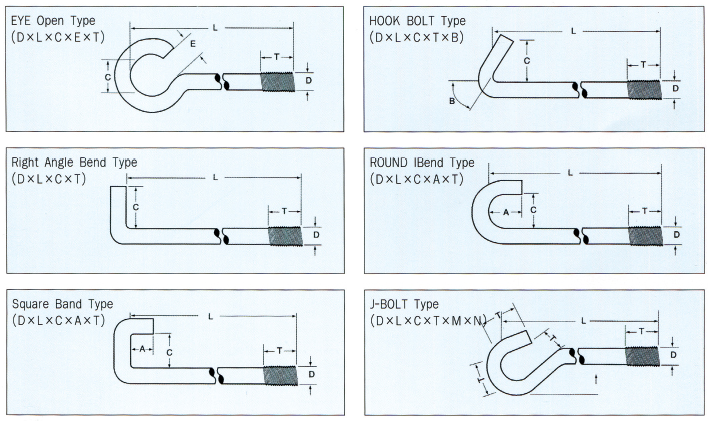

ANCHOR
